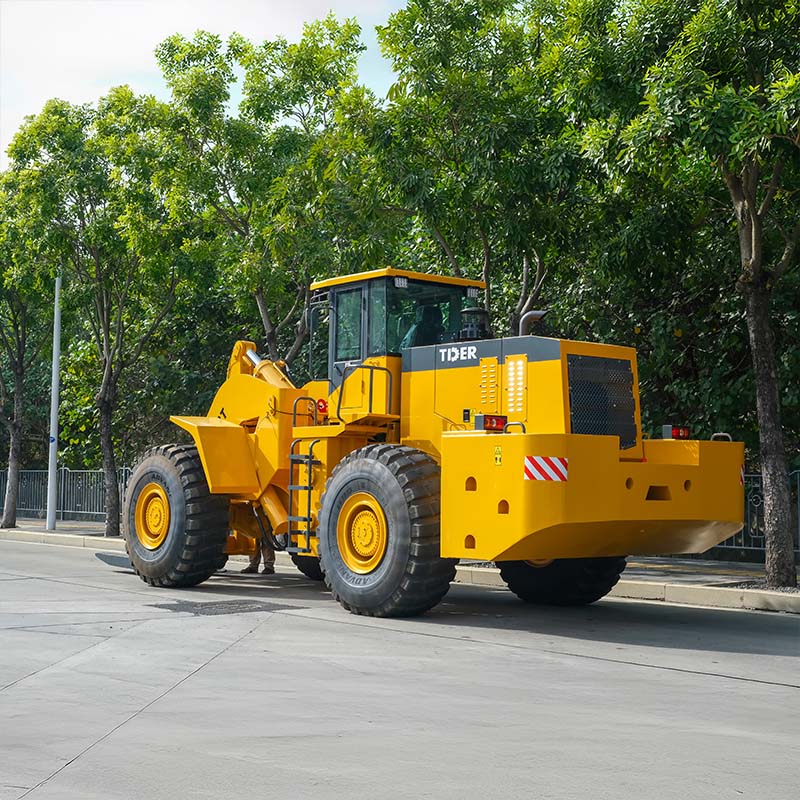

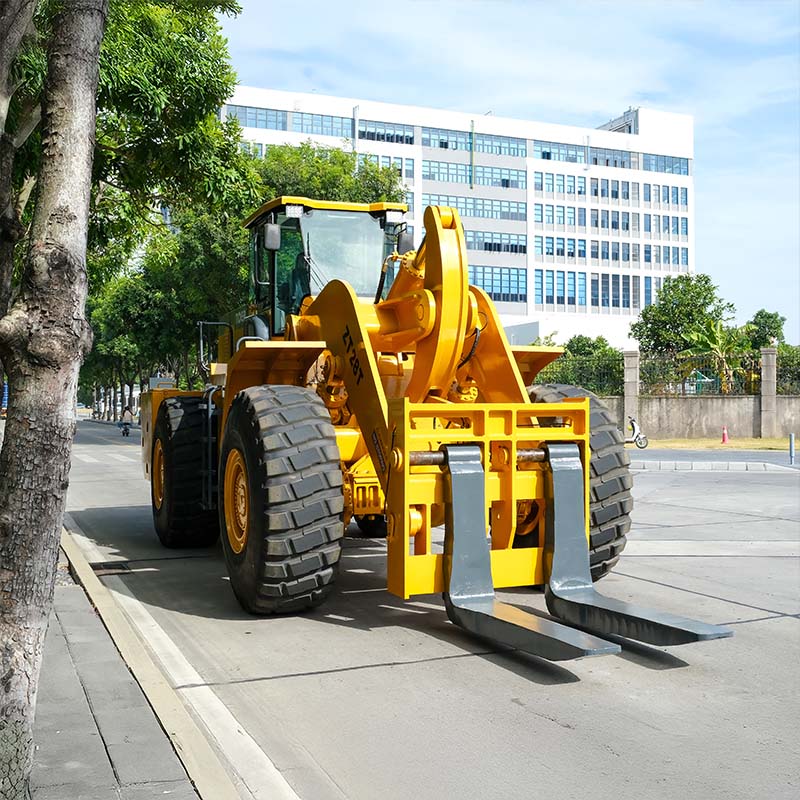

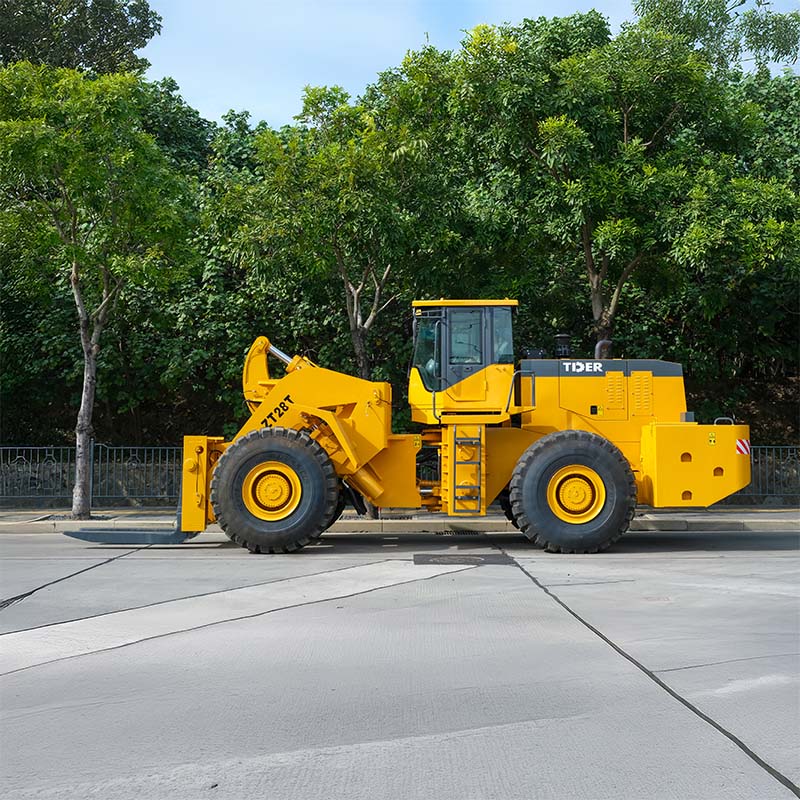

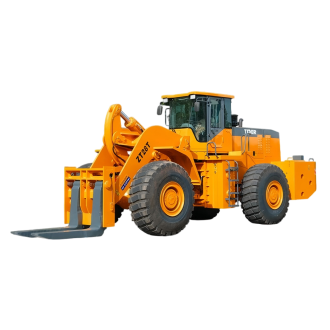

28 Ton Forklift Loader
ZT28T
Features
Heavy-Duty Power & Hydraulic System for Mining Work
The Weichai high-torque engine, reinforced drivetrain, and high-efficiency hydraulic system work as an integrated power package, delivering stable torque output, smooth energy transfer, and precise lifting control. This system is engineered to handle continuous heavy-load cycles in demanding environments such as mining sites, quarry operations, and large-scale bulk material handling yards.
High-Strength Fork System for Industrial Handling
Reinforced fork system with high-strength 1500×250×130 mm specification enhances load distribution and structural rigidity, improving safety and control when handling oversized and heavy materials.
Industrial-Grade Tire System for Harsh Terrain Grip
Large-size 26.5-25 off-road tires deliver strong traction and impact resistance, ensuring stable movement on muddy, rocky, and uneven working surfaces.
Operator Comfort Cabin with Safety Monitoring System
The air-conditioned cab equipped with rear-view camera improves operator comfort and visibility, enhancing safety during long-hour operations and reversing in complex jobsite environments.
Specifications
| Engine Rated Power | kW | 178 |
| Overall Length | mm | 9300 |
| Overall Width (Outside Tires) | mm | 3250 |
| Overall Height | mm | 3650 |
| Dumping Height | mm | 3200 |
| Tire Specification | - | 26.5-25 |
| Wheelbase | mm | 4000 |
| Tread Width | mm | 2600 |
| Fork Dimensions (L×W×H) | mm | 1500 × 250 × 1300 |
| Distance of Fork | mm | ≤820 |
| Rated Loading Capacity | kg | 28000 |
| Operating Weight | kg | 30000 |
| Rated Loading Capacity | t | 28 |
| Max. Climbing Gradient | ° | 28 |
| Rated Speed | r/min | 2200 |
| Lifting Time | s | ≤6.8 |
| Hydraulic Cylinder Time | s | ≤12.55 |
| Forward Gear I Speed | km/h | 0-11.5 |
| Forward Gear II Speed | km/h | 0-38 |
| Reverse Gear I Speed | km/h | 0-16 |
