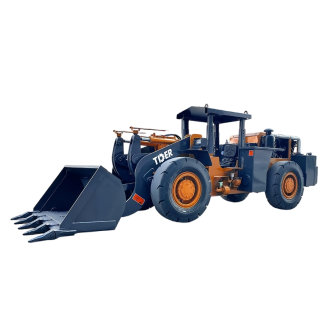

1.6 Ton Underground Loader
ZT916U
Features
Compact Underground Design for Narrow Tunnel Operation
The ultra-compact structure with width ≤1.65m, height ≤1.9–2.3m and short body length ensures safe access to low, narrow and confined tunnel environments, improving maneuverability and productivity in underground mining and excavation sites.
High-Efficiency Underground Working Capability
Optimized structural layout with small turning radius enables flexible loading, transporting, and unloading operations, improving cycle efficiency in tunnel excavation, mine haulage, and underground construction tasks.
High-Torque Power System for Heavy Underground Loads
The Yunnei low-speed high-torque engine combined with 280 heavy-duty torque converter transmission delivers strong traction power, ensuring stable performance under continuous loading and uphill material transport conditions in mining operations.
Heavy-Duty Mining Axle and Braking System for Safety Control
A reinforced wheel-side reduction axle paired with air-over-hydraulic disc braking system provides strong braking force and durability, ensuring safe operation under heavy load and steep underground working conditions.
Wear-Resistant Bucket System for Extended Service Life
The bucket uses 400-grade wear-resistant steel cutting edges, significantly improving durability and impact resistance, reducing replacement frequency in high-abrasion mining and rock loading environments.
Clean Operation System with Exhaust and Water Filtration
Equipped with DOC exhaust purification and water filtration system, the machine effectively reduces emissions and dust pollution, improving underground air quality and meeting stricter mining environmental requirements.
Specifications
| Bucket Capacity | m³ | 0.6 |
| Rated Load | t | 1.6 |
| Operating Weight | t | 5 |
| Speed | km/h | 0-16 |
| Forward Gear | km/h | I0-7Ⅱ0-16 |
| Reverse Gear | km/h | I0-7Ⅱ0-16 |
| Grade Ability | ° | 15° |
| Overall Dimension (L×W×H) | mm | 5270×1700×1840 |
| Turning Radius (Inner side) | mm | 3290 |
| Turning Radius (Outside) | mm | 5210 |
| Min. Ground Clearance | mm | 300 |
| Wheel Base | mm | 2480 |
| Wheel Tread | mm | 1460 |
| Max. Dumping Height | mm | 1830 |
| Dumping Reach | mm | 930 |
| Engine Model | - | YUNNEI YN38GBZ/ YN4EZ080-30CR |
| Rated Power | kW | 76/61.8 |
| Tire Model | - | 9.75-18 |

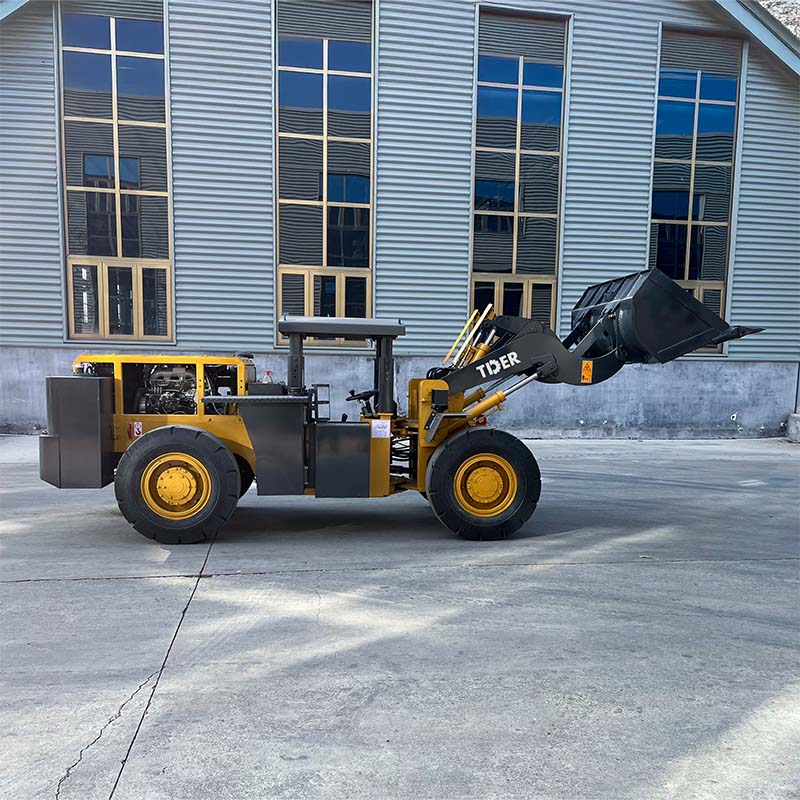

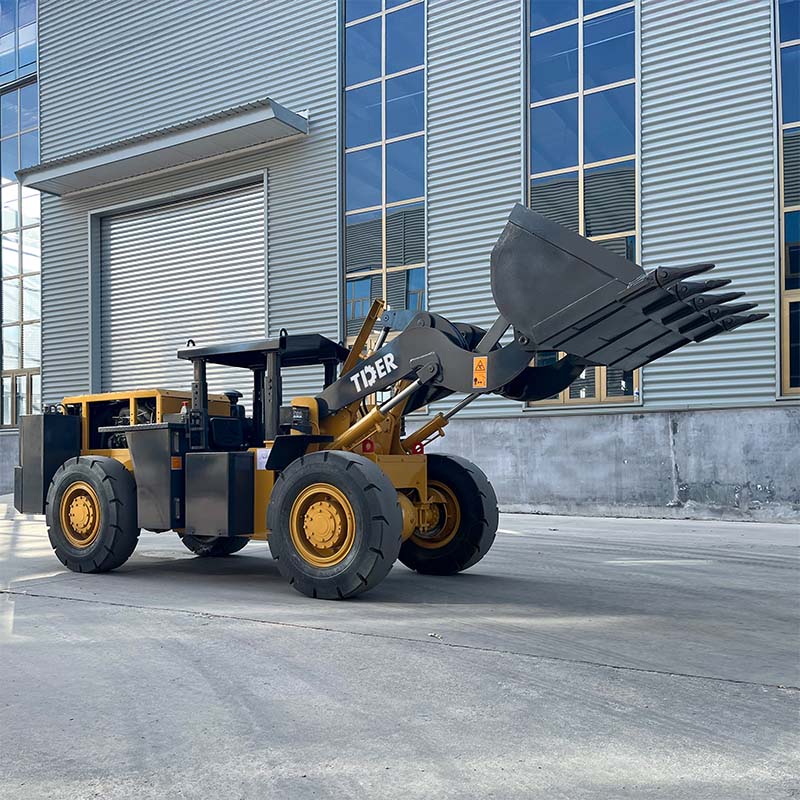

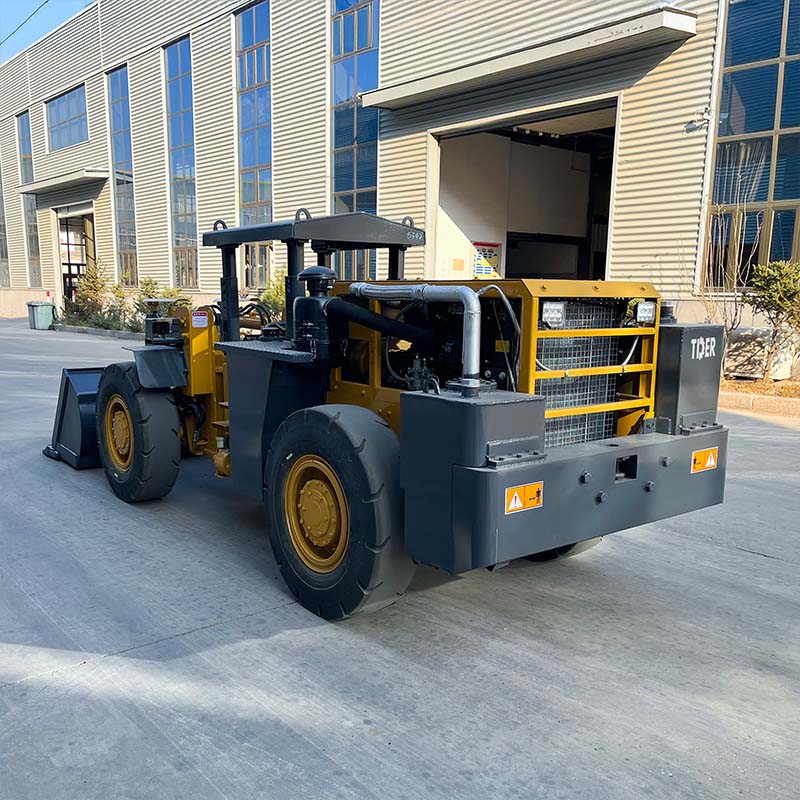

Product Showcase
