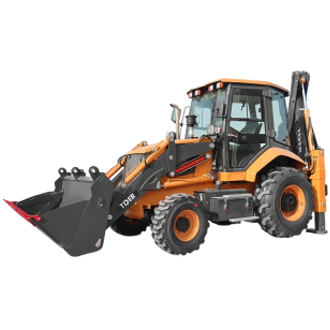

2.5 Ton Backhoe Loader
ZT388-Ⅴ
Features
Full Electronic Transmission with Intelligent Gear & Mode Matching
The full electronic 4F/4R powershift transmission system from XCMG allows more precise gear switching compared to traditional mechanical systems, resulting in smoother acceleration and more stable control during load changes.
Combined with intelligent working/traveling mode logic, the machine reduces unnecessary engine load, improving overall fuel efficiency in mixed operation scenarios.
Heavy-Duty Wet Axle for Long-Term Stability Under Load
The wet brake axle from XCMG provides stronger heat resistance and longer service life under continuous heavy-duty operation, reducing brake fade and improving stability during downhill or high-load working conditions.
Electro-Proportional Control for More Precise and Less Fatiguing Operation
The electro-hydraulic pilot control system improves hydraulic response accuracy, allowing smoother multi-action coordination while reducing operator effort during long working hours.
Hydraulic Oil Brake System for Stable Safety Control
The hydraulic oil brake system delivers stable and consistent braking performance under load, improving safety on slopes and uneven terrain while reducing brake wear during continuous operation.
Specifications
| Overall Dimensions | Dimensions (mm) | 6150*2350*3763 |
| Wheel base (mm) | 2250 | |
| Track (mm) | 1950 | |
| Minimum Ground Clearance (mm) | 300 | |
| Minimum Turning Radius (mm) | 6580 | |
| Performance Parameters | System Pressure (Mpa) | 18 |
| Total Weight (kg) | 8300/8500 | |
| Maximum Speed (Km/h) | 28/38 | |
| Maximum Climbing Ability (°) | 35 | |
| Excavation Parameters | Maximum Telescopic Excavation Depth (mm) | 4000/5300 |
| Maximum Excavation Radius (mm) | 4800/6000 | |
| Maximum Lifting Height (mm) | 5200/5950 | |
| Bucket Capacity (m³) | 0.3 | |
| Excavator Rotation Angle (°) | 190 | |
| Loading Parameters | Maximum Unloading Height (mm) | 2742 |
| Maximum Unloading Distance (mm) | 1062 | |
| Bucket Capacity (m³) | 1.2 | |
| Engine | Model | Yuchai |
| Rated Power (KW) | 75 | |
| Rated Speed (r/min) | 2600 | |
| Cylinders-Bore (mm) | 4-105 | |
| Transmission System | Gearbox | Full Electronic Powershift |
| Number of Gears | 4 Forward, 4 Reverse | |
| Liquid Torque Converter | XCMG MYF110 | |
| Axle | Brand | XCMG Wet Brake Axle |
| Tires | 14-17.5/19.5L-24 | |
| Driving Brake | Air Over Hydraulic Disc Brake | |
| Parking Brake | Air Brake | |
| Oil Capacity | Fuel Tank (L) | 100 |
| Hydraulic Oil Tank (L) | 100 | |
| Others | Drive Type | Four-wheel Drive |
| Transmission Type | Liquid Transmission | |
| Control System | Electromagnetic Hydraulic Pilot Control |

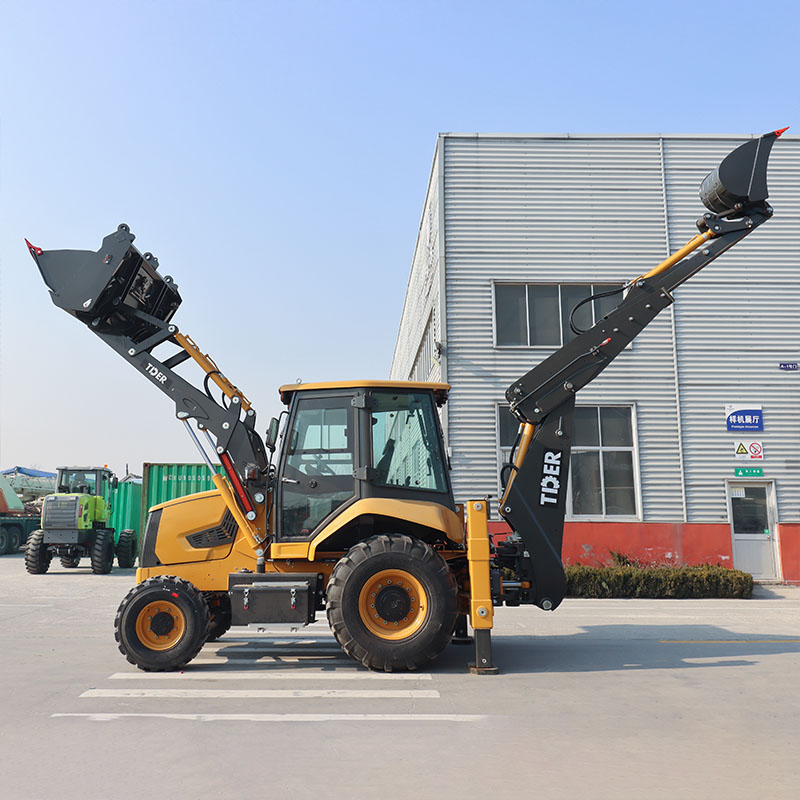

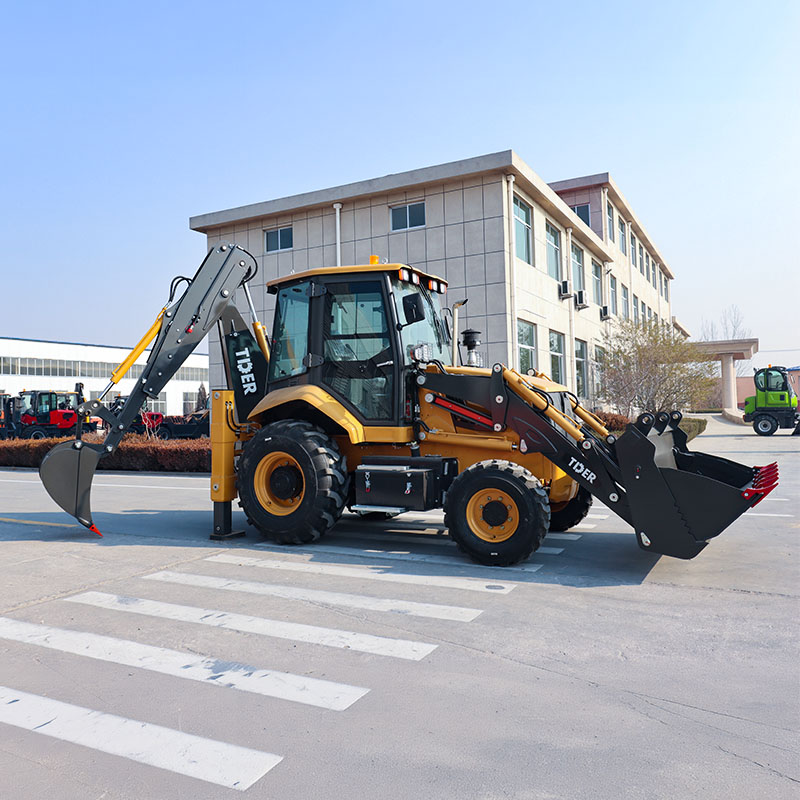

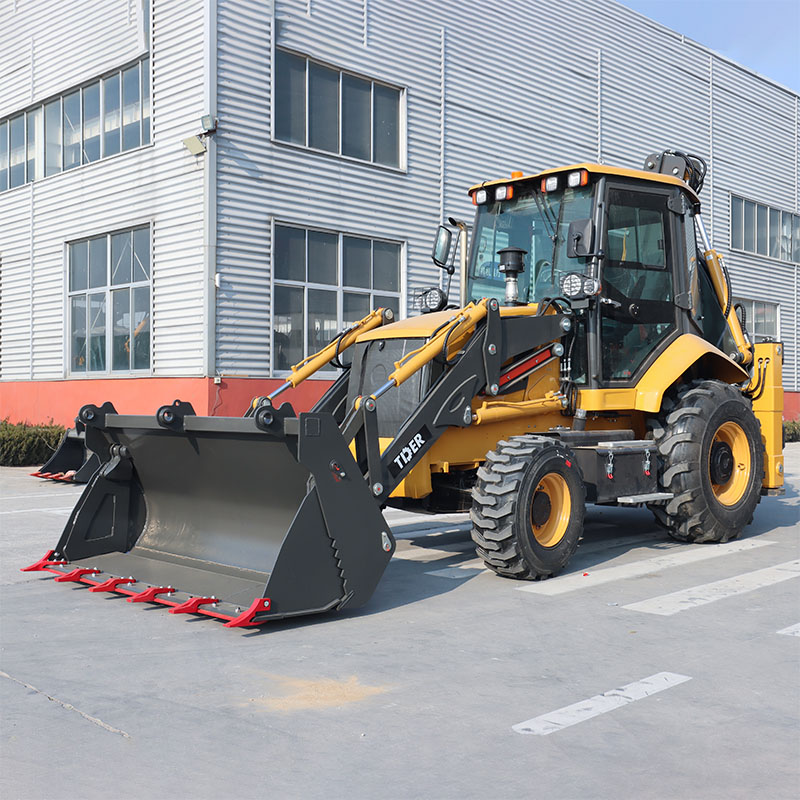

Product Showcase
