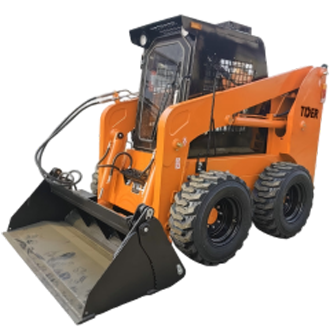

1050kg Skid Steer Loader
TDS75
Features
Rexroth Hydraulic Core System for Industrial Reliability
TDS75 uses Rexroth hydraulic motors and pumps (a globally recognized German hydraulic brand) combined with an Italian HB valve system, ensuring stable and efficient hydraulic power delivery. This configuration helps maintain consistent working force and smooth multi-action performance under continuous heavy-duty job site conditions.
Hydraulic Pilot Control for Effortless Machine Handling
The hydraulic pilot control system allows the operator to control the machine with lighter input force and more consistent response across all working movements. This results in more predictable machine behavior during lifting, loading, and multi-function operation, helping operators maintain stable performance in continuous job site use.
Flexible Operator Comfort Upgrade Options
Available comfort configurations include: air conditioning system, heating system and luxury air-suspension seat. These options allow the machine to adapt to cold, hot, and long-duration working environments, improving operator productivity and reducing fatigue.
Global Emission Compliance, Customized Power
Choose from standard Xinchai 55kW or upgrade to global premium brands—including Cummins, Yanmar, Kubota, LS, and Euro V certified Xinchai engines. Tailor your machine’s power to fit local emission standards and service networks worldwide.
Heavy-Duty Air Filtration for Engine Protection
Standard heavy-duty air filter ensures optimal airflow even in the dustiest environments. It protects the engine from airborne debris, reduces maintenance downtime, and extends overall engine lifespan.
Specifications
| Operating Load | Kg | 1050 |
| Max Speed | Km/H | 12\18 |
| Rated Flux | L/Min | 75 |
| High Flow Flux | L/Min | 120 |
| Tire Model | 12-16.5 | |
| Self Weight Bucket | Kg | 3800 |
| Bucket Capacity | M³ | 0.5 |
| Overall Operating Height | mm | 4070 |
| Hheight To Top Of Cab | mm | 2160 |
| Without Bucket Length | mm | 2880 |
| Overall Length With Bucket | mm | 3580 |
| Dumping Height | mm | 2450 |
| Width | mm | 1880 |
| Bucket Width | mm | 1880 |
| Height To Bottom Of Level Bucket | mm | 2983 |
| Dumping Angle At Maximum Height | ° | 40 |
| Height To Bucket Hinge Pin | mm | 3150 |
| Dumping Reach | mm | 700 |
| Rollback Of Bucket On Ground | ° | 30 |
| Rollback Of Bucket At Full Height | ° | 104 |
| Wheelbase | mm | 1115 |
| Ground Clearance | mm | 205 |
| Angle Of Departure | ° | 20 |
| Front Turning Radius Without Bucket | mm | 1250 |
| Front Tuning Radius | mm | 2112 |
| Rear Tuning Radius | mm | 1774 |
| Rear Axle To Bumper | mm | 1082 |
| Tread Width | mm | 1500 |
| Engine | Xinchai A498T | |
| Rated Power | Kw | 55 |
| Fuel Tank Capacity | L | 75 |

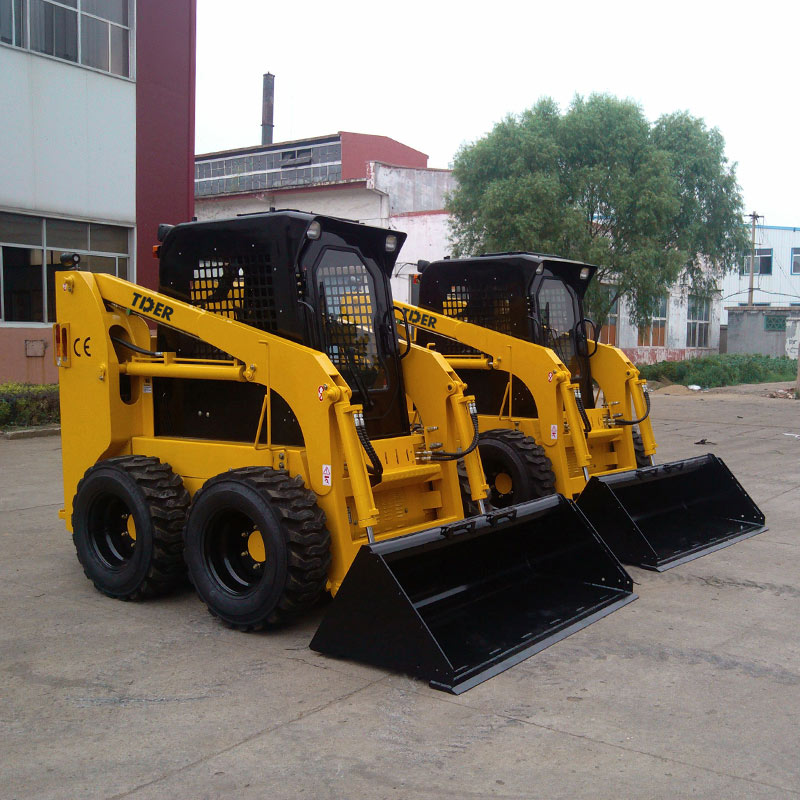

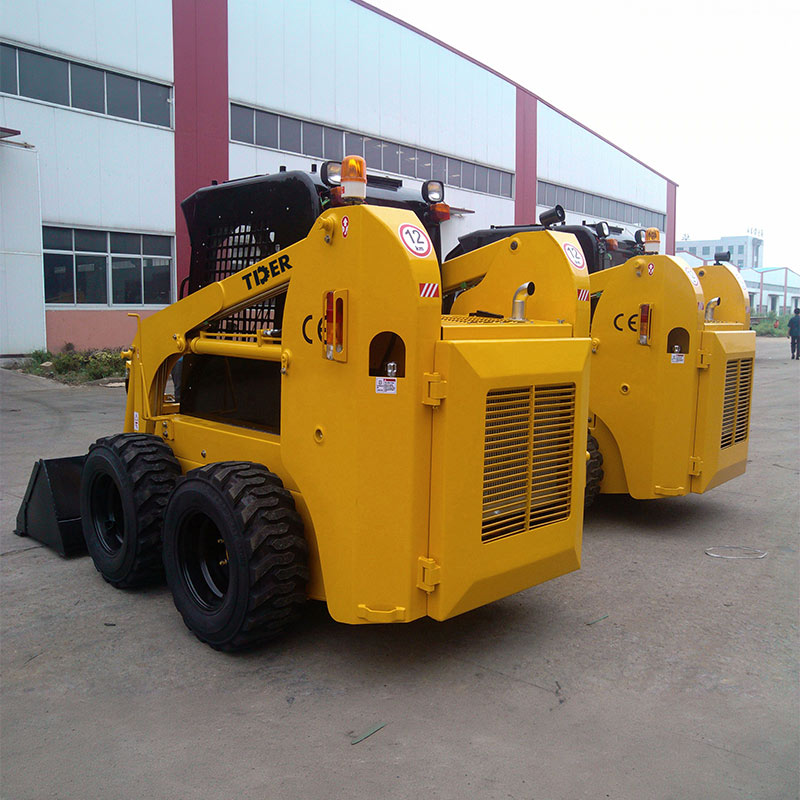

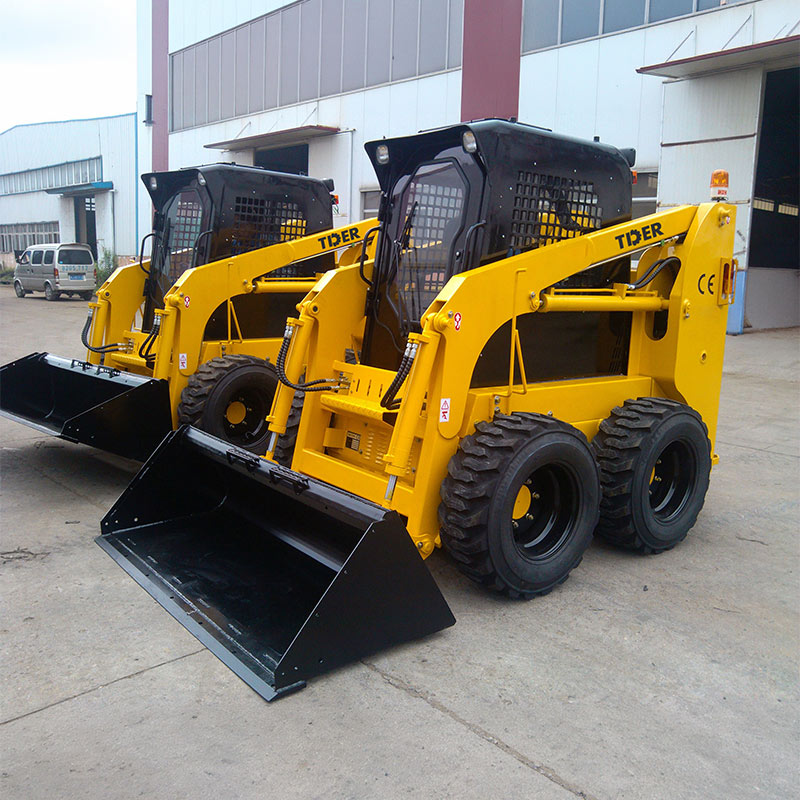

Product Showcase
