4m³ Concrete Mixer Truck
TCM40

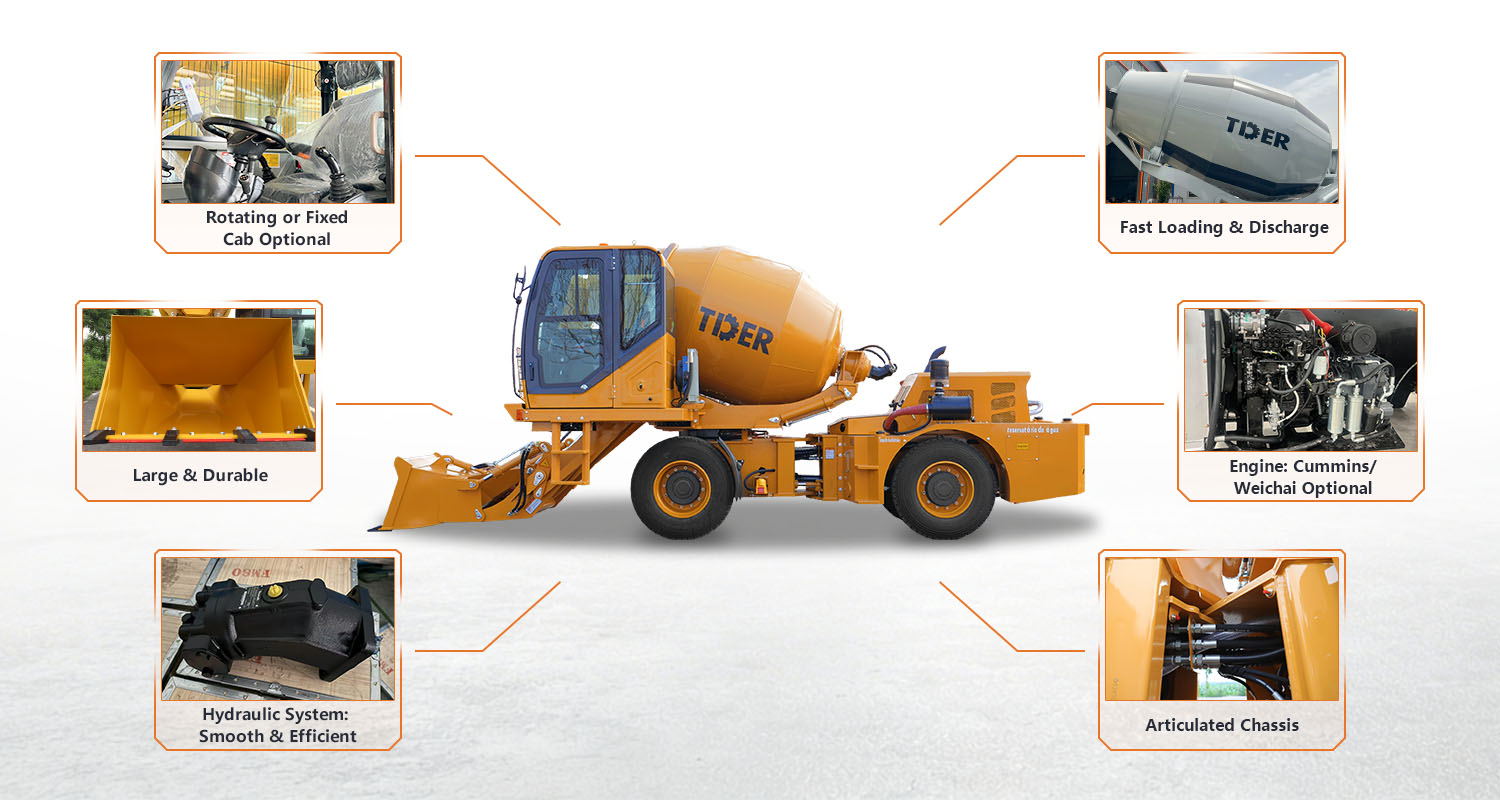

Features
Fuel-Efficient Engine Options
The TCM40 is available with Cummins and Yuchai Euro 5 engines, designed to optimize fuel consumption and reduce daily operating costs. This power system helps improve long-term cost efficiency while maintaining stable performance under continuous construction and transport operations.
Improved Maneuverability with Articulated Frame Design
The articulated chassis combined with synchronized cab and drum rotation improves steering flexibility and working coordination, allowing smoother operation in narrow and complex jobsite conditions.
Fast Travel and Strong Power
The dual-speed transmission allows smooth switching between fast travel and high-torque working mode, helping operators move quickly between sites while maintaining strong pushing power under load conditions.
Reinforced Axle System for Safer Heavy Load Transport
The heavy-duty drive axle with dual braking provides stronger stability and safer control during loaded transport, improving confidence and safety when operating on rough or uneven jobsite roads.
Efficient Discharge System for Faster Concrete Unloading
The vibration-assisted discharge system helps improve concrete flow inside the drum, reducing sticking and ensuring quicker, more complete unloading to improve overall jobsite efficiency.
Operator Comfort and Safety Cab for Long Working Hours
The cab is designed to reduce operator fatigue with a shock-absorbing seat and clear digital interface. Front and rear cameras combined with LED lighting improve visibility and safety when working in low-light or confined construction environments.
Specifications
| Overall Dimensions | mm | 6970×2850×4320 |
| Wheelbase | mm | 3200 |
| Operating Weight | kg | 9500 |
| Engine | / | YUDONG 91kW (4108 Turbocharged) |
| Power | kW | 92 |
| Transmission | / | 315 Split Type |
| Drive Axle | / | 3.0T Wheel-side Reduction Axle |
| Tires | / | 16/70-22.5 Dual Tires |
| Bucket Capacity | m³ | 0.65 |
|
Mixing Capacity Maximum output capacity |
m³ | 4 |
| Reduction Ratio | / | 0.113194444 |
| Rotation Speed | rpm | ≥15 |
| Reducer | / | Chinese brand |
| Travel Speed | km/h | 35 |
| Drive Type | / | 4×4 |
| Water Tank Capacity | L | 1070 |
| Diesel Tank Capacity | L | 180 |
| Hydraulic Oil Tank Capacity | L | 180+35 |

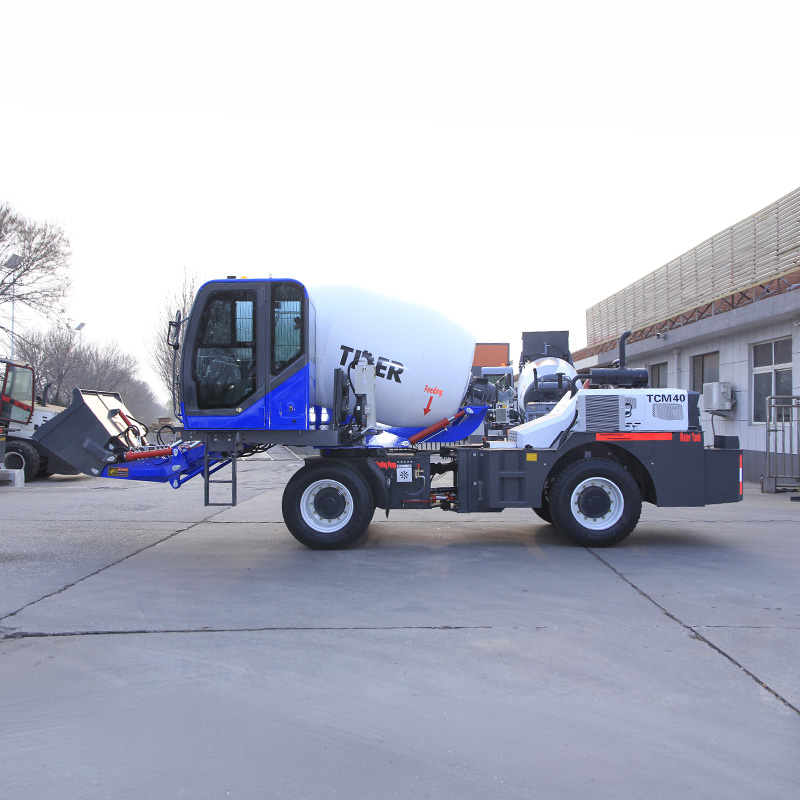

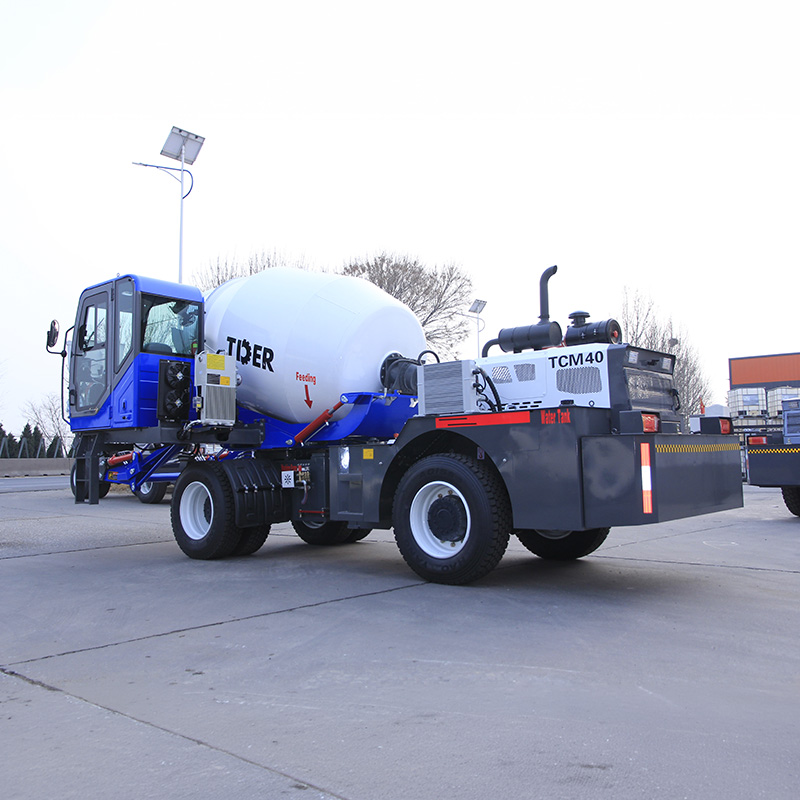

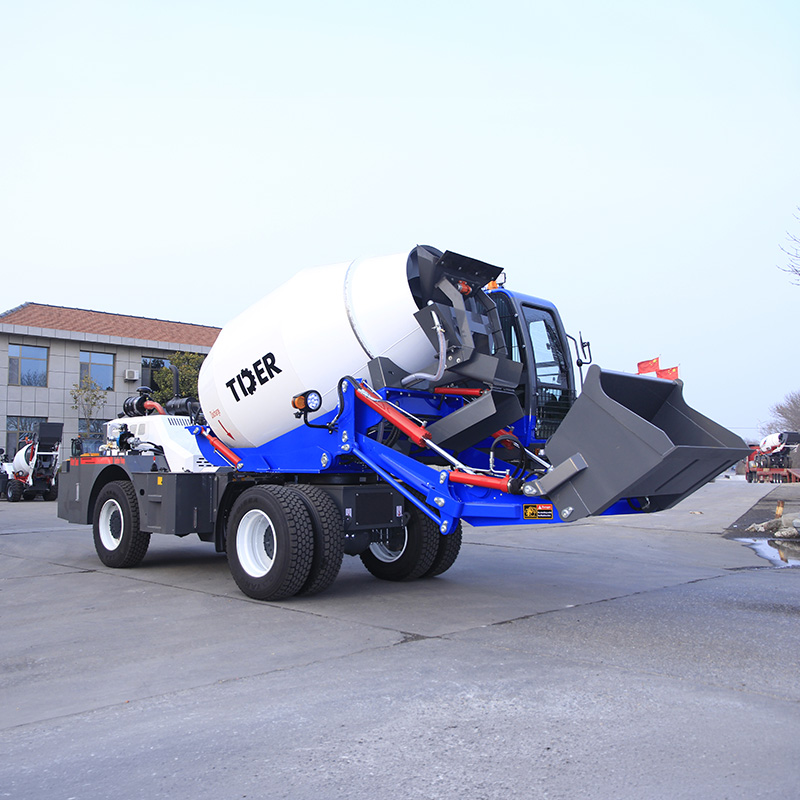

Product Showcase
