3.5 Ton Telehandler
FT35
Fitur
10.5 m reach for high-level material placement

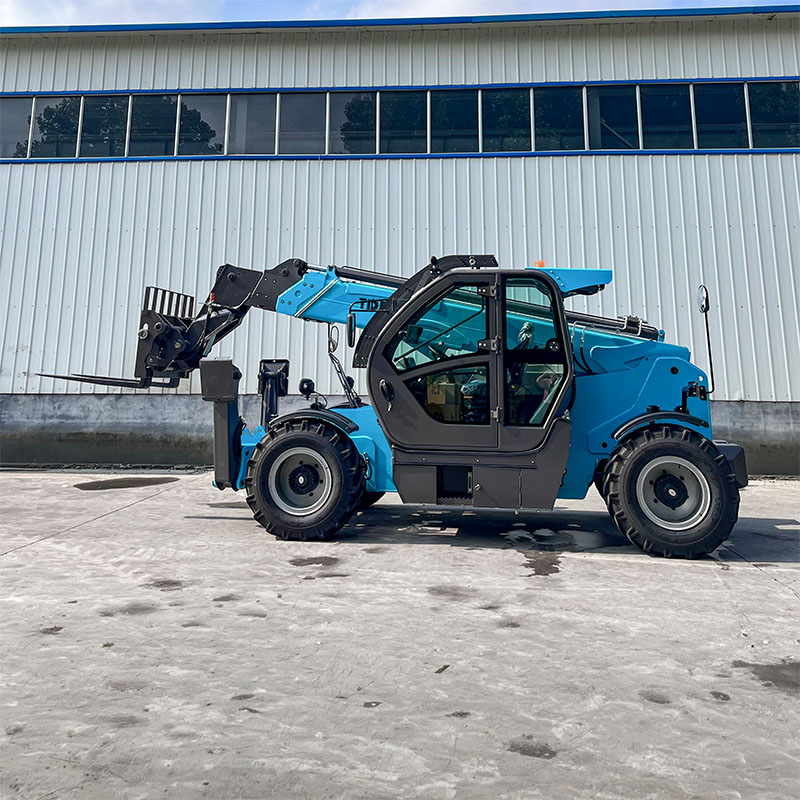

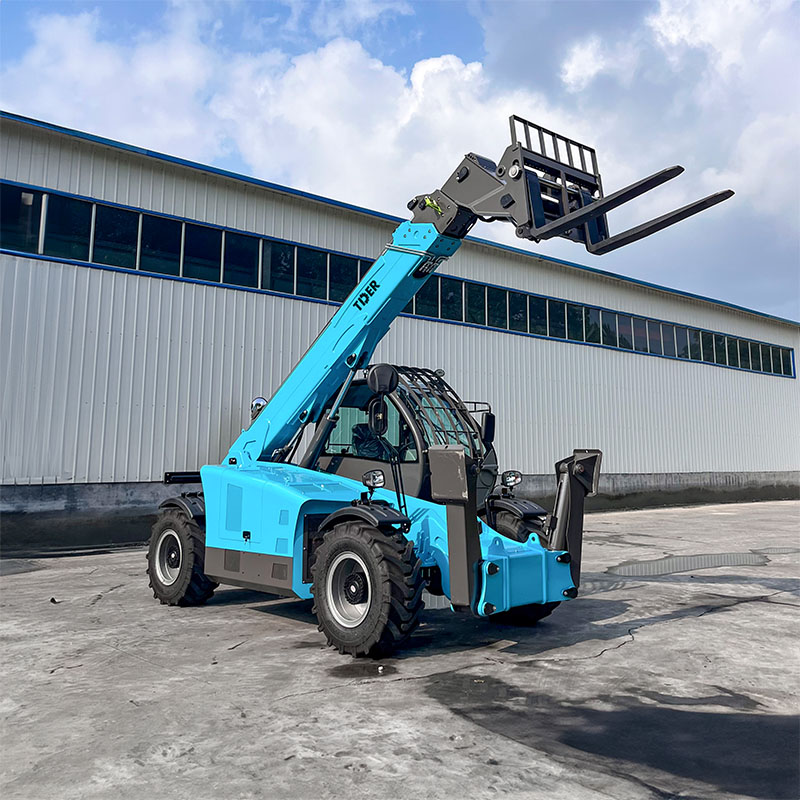

The FT35-3510 is built for customers who need substantially more working height from a 3.5-ton-class machine. Its three-stage 10.5 m boom extends the working envelope for high-level stacking, elevated construction materials and placement tasks where a 7 m machine cannot reach the required position.
Proportional hydraulics matter more as reach increases
The load-sensitive hydraulic system and electro-proportional multi-way valve provide controlled hydraulic response when lifting, extending and positioning the boom. At greater reach, precise movement becomes increasingly important because small control inputs can produce larger movements at the end of the boom.

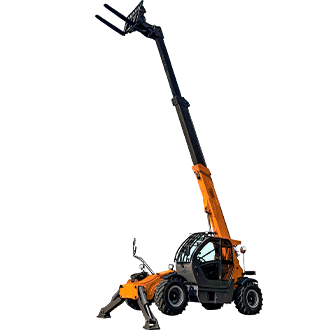

Stabilizers provide a stronger foundation for elevated work
The FT35-3510 combines stabilizers, a 500 kg cast counterweight and BS1000 high-strength steel. These elements work together around the long-boom configuration, giving the machine a more substantial working platform for demanding elevated operations.
Load management becomes part of the operating process
A load moment limitation system works alongside the 0.5% weighing system to give the operator better awareness of changing load conditions. Automatic fork leveling further reduces the need for constant attachment corrections during elevated placement.
A controlled high-reach telescopic telehandler forklift
The three Smart Handling modes give operators different ways to approach repetitive high-level work. Batch Mode supports vertical material movement, while Manual Mode allows direct operator control when required. End-position damping helps reduce hydraulic shocks as the lifting, tilting and telescopic cylinders approach their limits.
SPESIFIKASI
| Main Performance | Maximum Capacity | kg | 3500 |
| Maximum Lift Height | m | 10.5 | |
| Maximum Outreach | m | 6.1 | |
| Weight & Dimensions | Overall Length to Carriage | m | 5.8 |
| Length to Face of Forks | m | 7 | |
| Overall Width | m | 2.2 | |
| Overall Height | m | 2.55 | |
| Wheelbase | m | 3.15 | |
| Ground Clearance | m | 0.35 | |
| Overall Cab Width | m | 0.84 | |
| Tilt-Up Angle | ° | 12 | |
| Tilt-Down Angle | ° | 114 | |
| External Turning Radius (Over Tires) | m | 4.25 | |
| Unladen Weight (with Forks) | kg | 9500 | |
| Tires | Tire Type | — | Pneumatic |
| Standard Tire Size | — | 16/70-20 | |
| Forks | Fork Length / Width / Section | mm | 1220 × 125 / 50 |
| Performance | Lifting Time | s | 10 |
| Lowering Time | s | 7 | |
| Extension Time | s | 12 | |
| Retraction Time | s | 8.6 | |
| Crowd Time | s | 4.8 | |
| Dump Time | s | 3.4 | |
| Engine | Engine Brand | — | YUCHAI |
| Engine Model | — | YCD4M22T-105 | |
| Rated Power | kW | 77.3 | |
| Transmission | Transmission Type | — | Torque Converter |
| Number of Gears (Forward / Reverse) | — | 46055 | |
| Maximum Travel Speed | km/h | 35 | |
| Parking Brake | — | Automatic Air-Cut Brake | |
| Service Brake | — | Oil-Immersed Multi-Disc Brakes on Front & Rear Axles | |
| Hydraulics | Hydraulic Pump Type | — | Gear Pump |
| Hydraulic Flow / Pressure | L/min / bar | 100 | |
| Tank Capacities | Engine Oil | L | 5.5 |
| Hydraulic Oil | L | 70 | |
| Fuel Tank | L | 95 | |
| Noise & Vibration | Noise at Driving Position (Lpa) | dB | 82 |
| Noise to Environment (Lwa) | dB | 105 | |
| Hand/Arm Vibration | m/s² | <2.50 | |
| Miscellaneous | Steering Wheels (Front / Rear) | — | 2/2 |
| Drive Wheels (Front / Rear) | — | 2/2 | |
| Safety Cab Homologation | — | FOPS Level 2 Cab |
*CATATAN: Spesifikasi dan konfigurasi dapat berubah sewaktu-waktu karena peningkatan dan perbaikan produk yang berkelanjutan tanpa pemberitahuan sebelumnya. Semua informasi hanya sebagai referensi, dan beberapa fitur bersifat opsional. Silakan hubungi tim penjualan internasional kami untuk konfirmasi. Spesifikasi dan konfigurasi akhir akan tunduk pada kontrak resmi yang ditandatangani oleh kedua belah pihak.
