Name: 0.8 Ton Walk-Behind Road Roller with Dual Drum Vibration
Availability: InStock

Features
Specifications
Product Showcase
FAQs
Related Products

Features

Compact Walk-Behind Design for Flexible Jobsite Access

The compact hand-guided design combined with hydraulic articulated steering allows the machine to operate efficiently in narrow and restricted work areas where larger rollers cannot access. Its lightweight structure simplifies transportation, storage, and jobsite deployment, helping contractors reduce equipment ownership costs while maintaining effective compaction performance for sidewalks, pathways, landscaping, trench backfilling, and residential projects.

Dual Drum Vibration System for Uniform Compaction

The dual steel drum and dual vibration design delivers consistent compaction performance across the full drum width, improving surface density and reducing the number of passes required for road maintenance, landscaping, and foundation work.

All-Wheel Drive Climbing System

The full hydraulic all-wheel drive system provides strong traction and gradeability on uneven terrain, helping the machine maintain stable travel and compaction performance on slopes, ramps, and soft ground conditions.

Danfoss Hydraulic Power System

Equipped with an imported Danfoss vibration pump and hydraulic drive architecture, the machine delivers smooth power transmission, stable vibration output, and reliable performance during continuous compaction operations.

Dual-Start Engine System for Improved Jobsite Reliability

The direct-injection air-cooled diesel engine features both electric and recoil starting systems, ensuring reliable machine startup under different working conditions while reducing downtime caused by power supply limitations.

Operator-Friendly Control Layout

The guide wheel and joystick control system reduce steering effort and simplify machine handling, allowing operators to maintain precise control and improve productivity during long working hours.

Specifications

Operating Mass	kg	800
Static Linear Load (Front/Rear)	N/cm	62 / 62
Vibration Amplitude	mm	0.25
Vibration Frequency	Hz	48
Centrifugal Force	kN	12
Travel Speed	km/h	0–4
Gradeability	%	40
Turning Radius	mm	2700
Steering Angle	°	±30
Overall Dimension (L×W×H)	mm	2400 × 880 × 1100
Vibration Drum Diameter	mm	400
Drum Width	mm	600
Wheelbase	mm	470
Engine Power / Model	kW	5.9
Water Tank Capacity	L	32

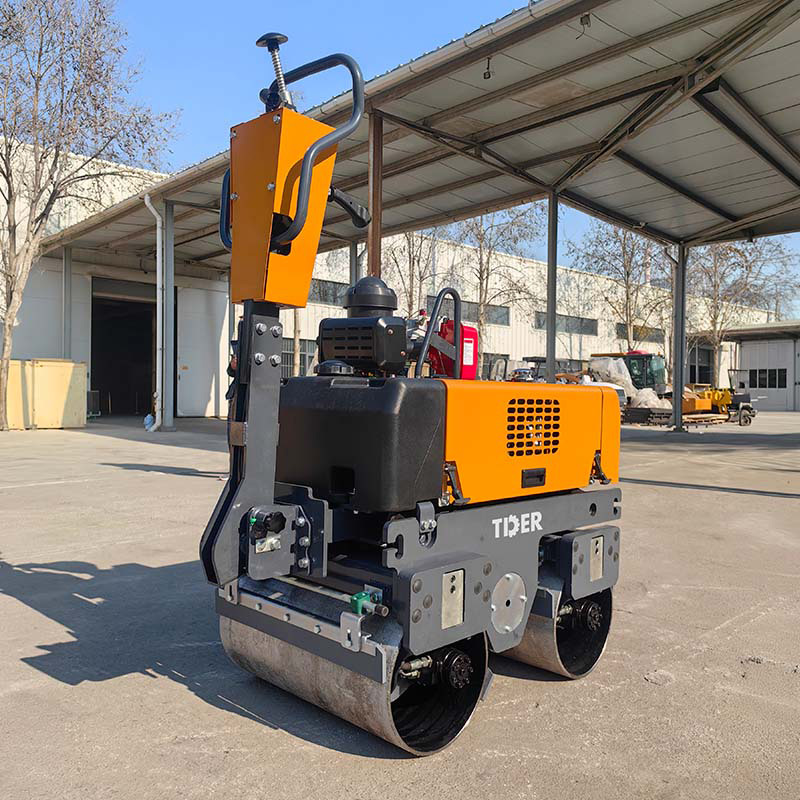

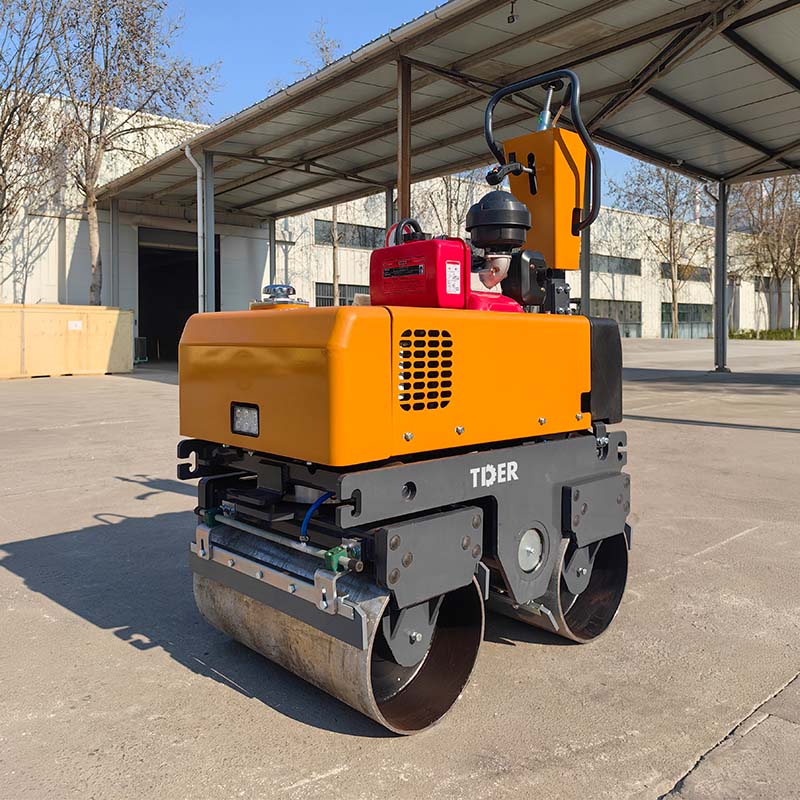

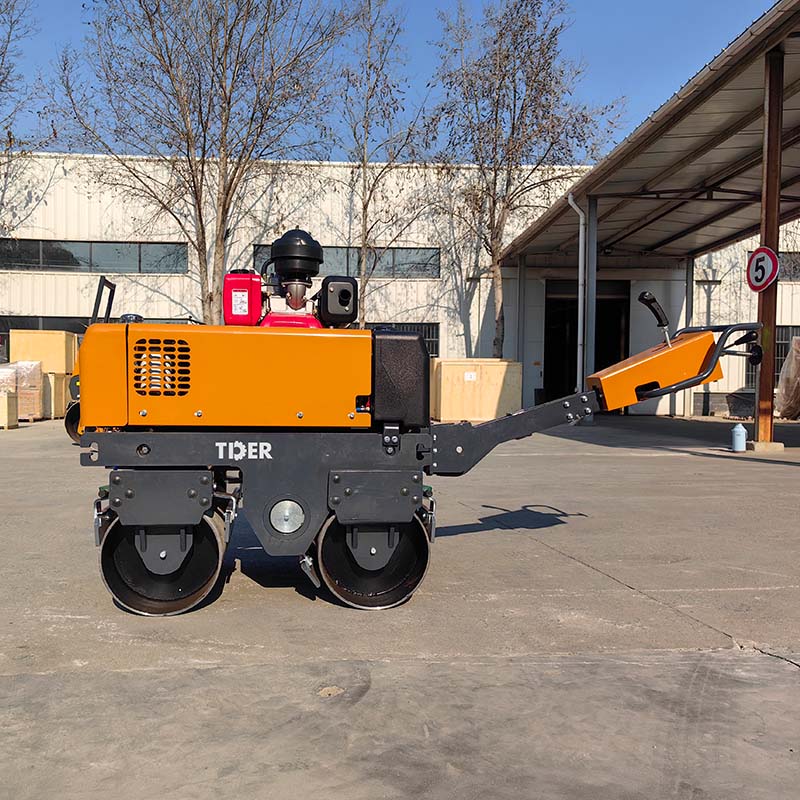

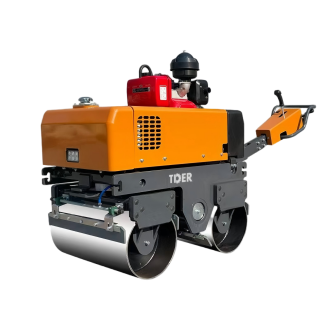

Product Showcase

Why Choose TDER?

20+ Years of Expertise

158 Countries Served

42,000㎡ of Advanced Production

Over $91M+ Annual Sales

FAQs

Are you a manufacturer or trading company?

TDER is a China-based manufacturer with over 20 years of experience in machinery production and export. Our machines have been exported to 158 countries. We have our own factory covering 42,000 m², integrating R&D, manufacturing, and global sales.

What payment terms do you accept?

We support T/T, L/C, and O/A. Usually, a 30% deposit is required, and the remaining 70% balance should be paid before delivery.

I am a first-time importer and don’t know the import process. What should I do?

We provide full guidance for the import process, from documentation to customs clearance, to ensure a smooth transaction.

What is the delivery time?

Normally, it takes 15–30 days to ship after receiving your deposit. Standard products in stock can be shipped immediately, while customized products may require longer, depending on your order requirements.

What about warranty?

Generally, we offer a 12-month or 2,000 working hours warranty, whichever comes first. Some products may have longer or shorter warranty periods, so please confirm with our sales team before placing your order.

Do you supply spare parts?

Customers can purchase consumable parts together with the machine. For any future replacement, we provide genuine parts at cost price. Parts will be shipped via international express, usually arriving within 7–10 days.

Do you have international certifications?

All our products have CE certification and meet international standards. If you require additional certifications, please consult with our sales team for detailed information.

Can the machine be customized?

Yes, we support OEM/ODM customization including engine brand, color, attachments, and specifications etc.
